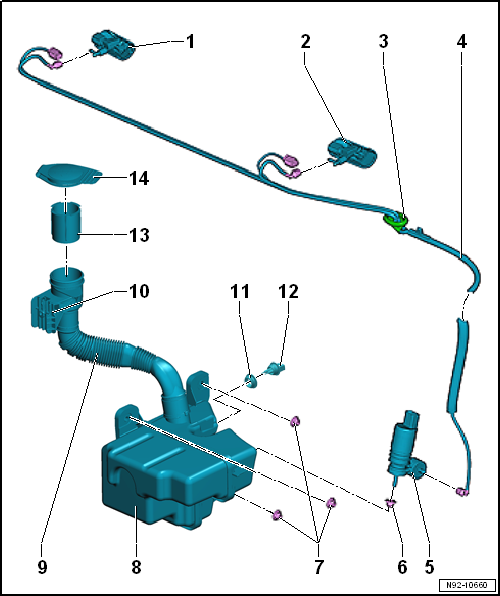

Assembly overview - windscreen washer system, without headlight washer system

1 -	Right spray jet

Versions with right washer jet heater element -Z21-

Removing and installing → Chapter

Adjusting → Chapter

2 -	Left spray jet

Versions with left washer jet heater element -Z20-

Removing and installing → Chapter

Adjusting → Chapter

3 -

Grommet

For water line in bonnet.

4 -	Water line

For windscreen washer system.

Colour: black.

5 -	Windscreen and rear window washer pump -V59-

Removing and installing → Chapter

6 -	Sealing grommet

Renew if damaged.

7 -

Nut

Qty. 3

Specified torque: 8 Nm

8 -	Washer fluid reservoir

For vehicles without headlight washer system.

Removing and installing → Chapter

9 -	Filler pipe

Caution

Danger of leakage!

Must not be removed from washer fluid reservoir.

For washer fluid reservoir.

10 -	Filler neck

Caution

Danger of leakage!

Must not be removed from filler pipe.

For washer fluid reservoir.

11 -

Seal

12 -	Windscreen washer fluid level sender -G33-

Removing and installing → Chapter

13 -

Strainer

14 -

Cap

For filler neck.
