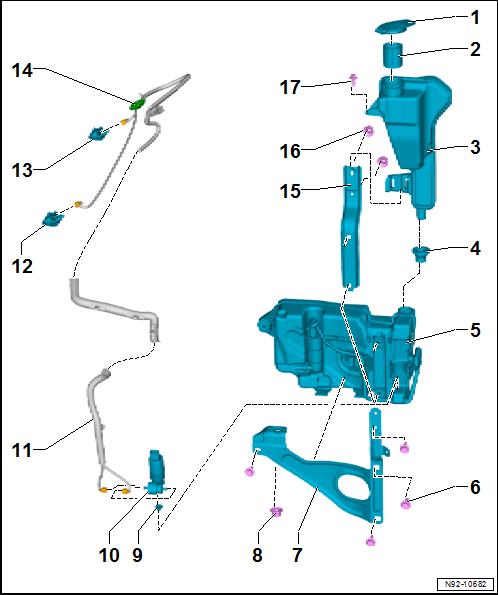

Assembly overview – windscreen washer system, with headlight washer system, »R«

1 -

Cap

For filler neck.

2 -

Strainer

3 -	Washer fluid reservoir, upper part

Washer fluid reservoir, 2-part version

Removing and installing → Chapter

4 -

Seal

Between upper and lower parts of washer fluid reservoir

Insert in lower part of washer fluid reservoir

Moisten seal with suitable lubricant before connecting upper and lower parts of washer fluid reservoir

5 -	Washer fluid reservoir, lower part

Washer fluid reservoir, 2-part version

With windscreen washer fluid level sender -G33-

Removing and installing → Chapter

6 -

Bolt

Qty. 4

Specified torque: 8.0 Nm

7 -

Bracket

Bracket for lower part of washer fluid reservoir

Removing and installing → Chapter

8 -

Nut

Specified torque: 8.0 Nm

9 -	Sealing grommet

Renew if damaged.

10 -	Windscreen and rear window washer pump -V59-

Removing and installing → Chapter

11 -	Water line

For windscreen washer system.

Colour: black.

12 -	Right spray jet

Versions with right washer jet heater element -Z21-

Removing and installing → Chapter

Adjusting → Chapter

13 -	Left spray jet

Versions with left washer jet heater element -Z20-

Removing and installing → Chapter

Adjusting → Chapter

14 -

Grommet

To protect water line when passed through bonnet

15 -

Bracket

Bracket for upper part of washer fluid reservoir

Removing and installing → Chapter

16 -

Nut

Qty. 2

Specified torque: 8.0 Nm

17 -

Bolt

Specified torque: 8.0 Nm
