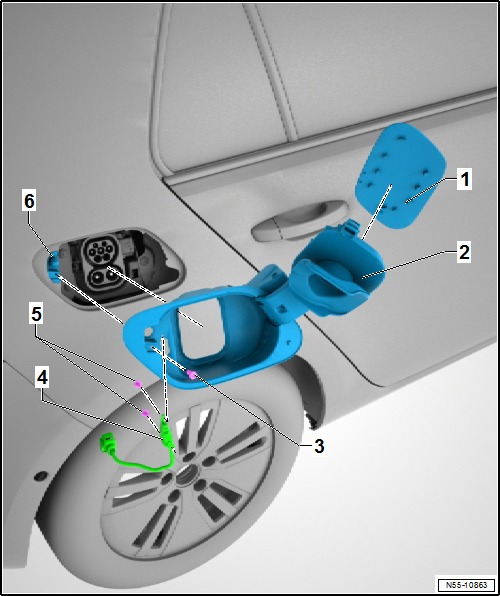

Assembly overview – tank flap unit, e-Golf

1 -	Fuel tank flap

–	Removing and installing → Chapter.

2 -	Tank flap unit

Removing and installing.

3 -

Bolt

1.5 Nm

4 -	Immediate charge button E766

Removing and installing

5 -

Bolt

1.5 Nm

6 -

Actuator

Removing and installing → Chapter
