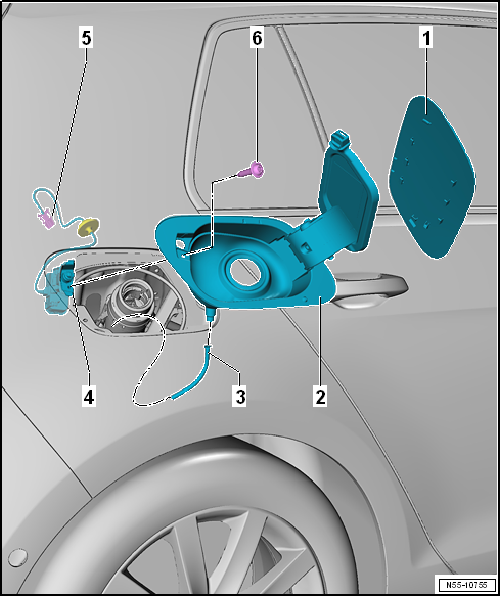

Assembly overview - tank flap unit

1 -	Fuel tank flap

–	Removing and installing → Chapter.

2 -	Tank flap unit

Removing and installing → Chapter

3 -	Water drain hose

Routed between wheel housing and wheel housing liner

4 -

Actuator

Removing and installing → Chapter

5 -	Electrical connections

6 -

Bolt

1.5 Nm

Tank flap unit

...

Assembly overview – tank flap unit, e-Golf

1 - Fuel tank flap – Removing and installing → Chapter. 2 - Tank flap unit Removing and installin ...
