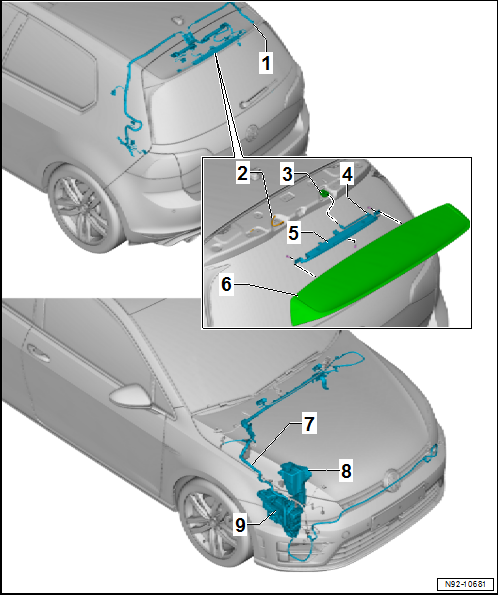

Assembly overview – rear window washer system, »R«

1 -	Water line

Leading to spray jet of rear window washer system; location: right side panel

2 -	Connection for high-level brake light

3 -	Connection for washer fluid hose

Angled piece for rear window washer system

Clipped to rear lid

4 -

Spray jet

Removing and installing → Chapter

Adjusting → Chapter

5 -	High-level brake light

Removing and installing → Chapter

6 -	Roof spoiler

Removing and installing roof spoiler → General body repairs, exterior; Rep. gr.66

7 -	Water line

Leading to spray jet of rear window washer system; location: engine compartment, right side

8 -	Washer fluid reservoir, upper part

Washer fluid reservoir, 2-part version

Removing and installing → Chapter

9 -	Washer fluid reservoir, lower part

Washer fluid reservoir, 2-part version

Removing and installing → Chapter

Assembly overview - rear window washer system, GTI and GTD

1 - Connection for high-level brake light 2 - Connection for washer fluid hose For rear window washer system. 3 ...

Removing and installing washer fluid reservoir

Note The washer fluid reservoir (which is the same for the windscreen and the rear window washer systems) is located in the front left wheel housing. ...
