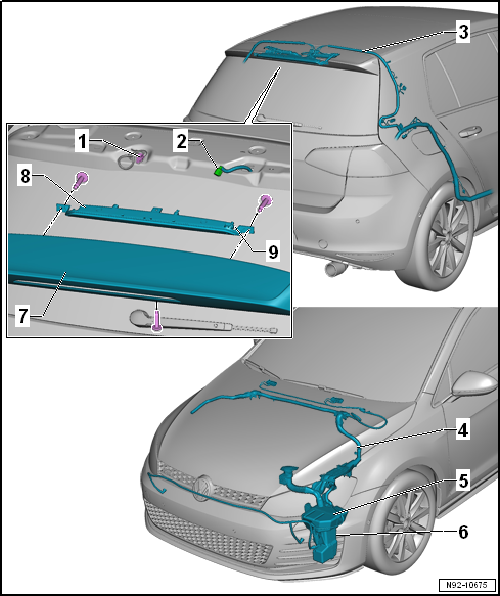

Volkswagen Golf Service & Repair Manual: Assembly overview - rear window washer system, GTI and GTD
| 1 - | Connection for high-level brake light |
| 2 - | Connection for washer fluid hose |
| For rear window washer system. |
| 3 - | Water line |
| Leading to spray jet of rear window washer system; location: right side panel. |
| 4 - | Water line |
| Leading to spray jet of rear window washer system; location: engine compartment. |
| 5 - | Washer fluid reservoir |
| Removing and installing → Chapter |
| 6 - | Windscreen and rear window washer pump -V59- |
| Removing and installing → Chapter |
| With sealing grommet; renew if damaged. |
| 7 - | Roof spoiler |
| 8 - | High-level brake light |
| 9 - | Spray jet |
| Removing and installing → Chapter |
| Adjusting → Chapter |
Assembly overview - rear window washer system, Golf
1 -
High-level brake light
2 -
Connection for washer fluid hose
For rear window washer system.
3 -
Spr ...
Assembly overview – rear window washer system, »R«
1 -
Water line
Leading to spray jet of rear window washer system; location: right
side panel
2 -
Connection for high-level br ...
