Volkswagen Golf Service & Repair Manual: Assembly overview – plenum chamber bulkhead

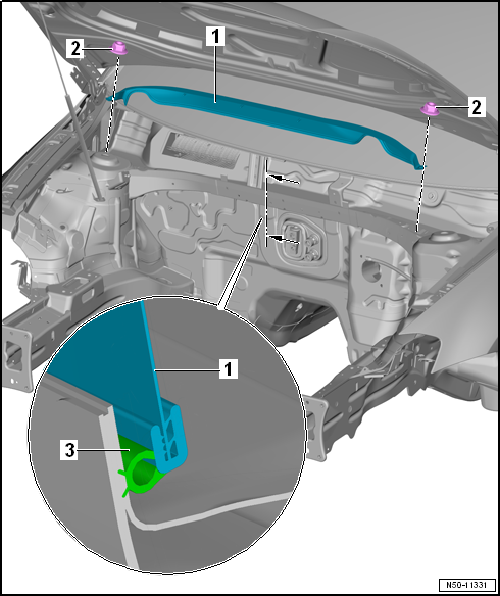

Assembly overview – plenum chamber bulkhead

1 -  Plenum chamber bulkhead
q   Removing and installing → Chapter
2 -  Hexagon nut
3 -  Seal, plenum chamber bulkhead
Plenum chamber bulkhead
...

Assembly overview - plenum chamber cover
1 -  Plenum chamber cover q   Right side q   Removing and installing → Chapter 2 -  Plenu ...
