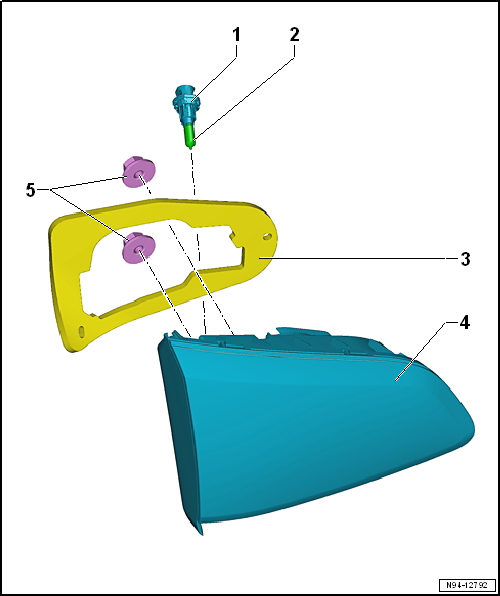

Assembly overview - tail lights in rear lid, with LEDs

1 -  Bulb holder
For left reversing light bulb -M16-/right reversing light bulb -M17-.
Removing and installing → Chapter
2 -  Reversing light bulb
Left reversing light bulb -M16-
Right reversing light bulb -M17-
Removing and installing → Chapter
3 -  Seal
Self-adhesive
Renew if damaged.
4 -  Left tail light 2 -MX5-/right tail light 2 -MX6-
Tail light in rear lid
Removing and installing → Chapter
5 -  Nut
Qty. 2
Specified torque: 3 Nm
Assembly overview - tail lights in rear lid, with bulbs
1 -  Bulb holder For left reversing light bulb -M16-/right reversing light bulb -M17-. Removing and installing → Chapter ...

Removing and installing tail light in rear lid
  Note Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way. ...
