Volkswagen Golf Service & Repair Manual: Assembly overview - tail lights in rear lid, with bulbs

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Tail lights / Assembly overview - tail lights in rear lid, with bulbs

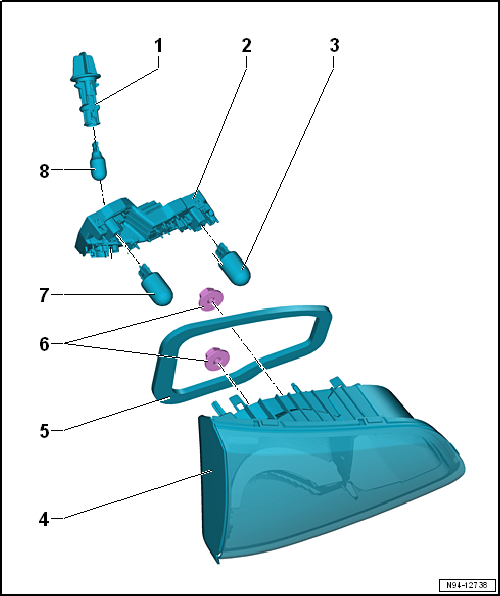

Assembly overview - tail lights in rear lid, with bulbs

1 -  Bulb holder
For left reversing light bulb -M16-/right reversing light bulb -M17-.
Removing and installing → Chapter
2 -  Bulb carrier
3 -  Rear fog light bulb
Left rear fog light bulb -L46-
Rear right fog light bulb -L47-
Removing and installing → Chapter
4 -  Left tail light 2 -MX5-/right tail light 2 -MX6-
Tail light in rear lid
Removing and installing → Chapter
5 -  Seal
Self-adhesive
Renew if damaged.
6 -  Nut
Qty. 2
Specified torque: 3 Nm
7 -  Tail light bulb
Right tail light bulb -M2-
Left tail light bulb -M4-
Removing and installing → Chapter
8 -  Reversing light bulb
Left reversing light bulb -M16-
Right reversing light bulb -M17-
Removing and installing → Chapter
Assembly overview - tail lights in vehicle body, with LEDs
1 -  Securing element Specified torque: 2 Nm 2 -  Seal Self-adhesive Renew if damaged. ...

Assembly overview - tail lights in rear lid, with LEDs
1 -  Bulb holder For left reversing light bulb -M16-/right reversing light bulb -M17-. Removing and installing → Chapter ...
