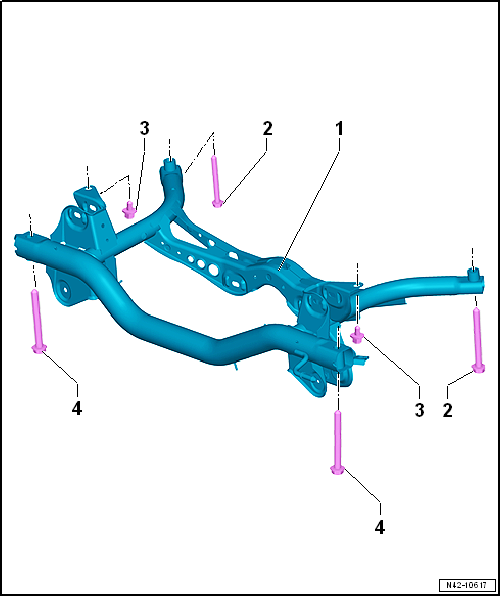

Assembly overview - subframe, multi-link suspension, front-wheel drive, except for e-Golf

1 -  Subframe
Removing and installing subframe with attachments → Chapter
2 -  Bolt
Renew after removing
70 Nm +180°
3 -  Bolt
Renew after removing
50 Nm +45°
4 -  Bolt
Renew after removing
70 Nm +180°
Subframe
...

Assembly overview - subframe, multi-link suspension, four-wheel drive
1 -  Subframe Removing and installing subframe with attachments → Chapter. 2 -  Rear bonded rubber bush ...
