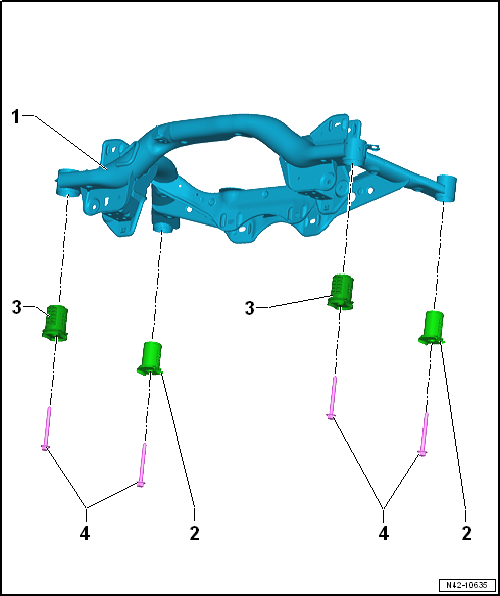

Assembly overview - subframe, multi-link suspension, four-wheel drive

1 -  Subframe
Removing and installing subframe with attachments → Chapter.
2 -  Rear bonded rubber bush
Renewing → Chapter.
3 -  Front bonded rubber bush
Renewing → Chapter.
4 -  Bolt
Renew after removing
70 Nm +180°
