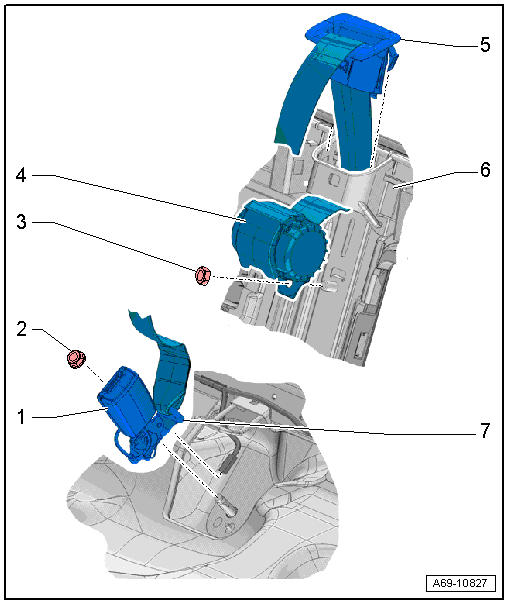

Volkswagen Golf Service & Repair Manual: Assembly overview - rear centre three-point seat belt
| 1 - | Belt buckle |
- With rear belt switch, front passenger side -E259-
- Removing and installing → Chapter
- Always renew after belt tensioner has deployed with seat belt fastened
- Must rest flat against contact surface when tightening nut
| 2 - | Nut |
- Specified torque 40 Nm
| 3 - | Nut |
- Removed due to an accident with seat belt fastened, renew nut.
- Specified torque 40 Nm
| 4 - | Belt inertia reel |
- Removing and installing → Chapter
| 5 - | Rear centre belt guide |
- Renew complete belt guide if damaged
- To remove, push locking lugs inwards on both sides and pull out belt guide
- When installing, push in belt guide until it audibly engages
| 6 - | Right rear seat backrest (2/3) |
| 7 - | Rear centre belt end fitting |
- Removing and installing → Chapter
