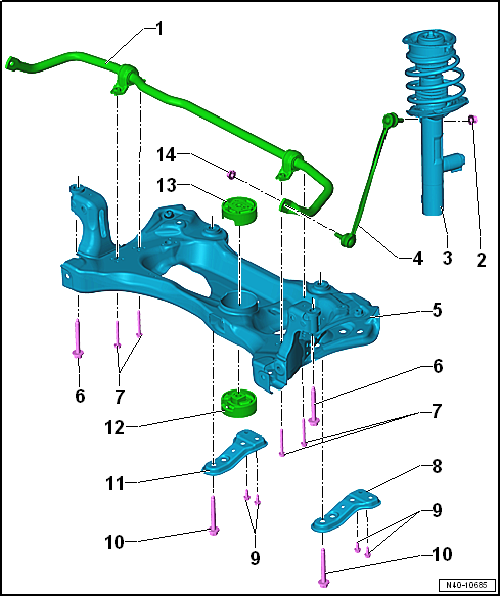

Assembly overview - subframe

1 -	Anti-roll bar with rubber bush

Removing and installing → Chapter

2 -

Nut

When tightening, counterhold on multipoint socket of joint stub.

Renew after removing

65 Nm

3 -	Suspension strut

4 -	Coupling rod

Removing and installing → Chapter

5 -

Subframe

Fixing position → Chapter

Lowering → Chapter

Removing and installing without steering rack → Chapter

Removing and installing with steering rack → Chapter

6 -

Bolt

Renew after removing

70 Nm +180°

7 -

Bolt

Renew after removing

20 Nm +180°

8 -

Left:

9 -

Bolt

Renew after removing

50 Nm +90°

10 -

Bolt

Renew after removing

70 Nm +180°

11 -	Right support

12 -	Lower bonded rubber bush for pendulum support

Renewing → Chapter.

13 -	Upper bonded rubber bush for pendulum support

Renewing → Chapter.

14 -

Nut

When tightening, counterhold on multipoint socket of joint stub.

Renew after removing

65 Nm
