Volkswagen Golf Service & Repair Manual: Removing and installing USB hub -R293-

Removing
–  Switch off ignition and all electrical consumers.
–  Remove ignition key, if inserted.
–  Remove centre console insert → General body repairs, interior; Rep. gr.68.

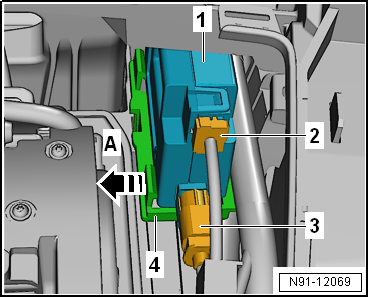

–  Press fastener on retainer for USB hub -R293--4- in direction of arrow -A-.
–  Lift USB hub -R293--1- and pull out backwards.
–  Release and detach connectors -2- and -3-.
Installing
Installation is carried out in reverse order of removal.
