Volkswagen Golf Service & Repair Manual: Assembly overview - speed sensor on rear axle

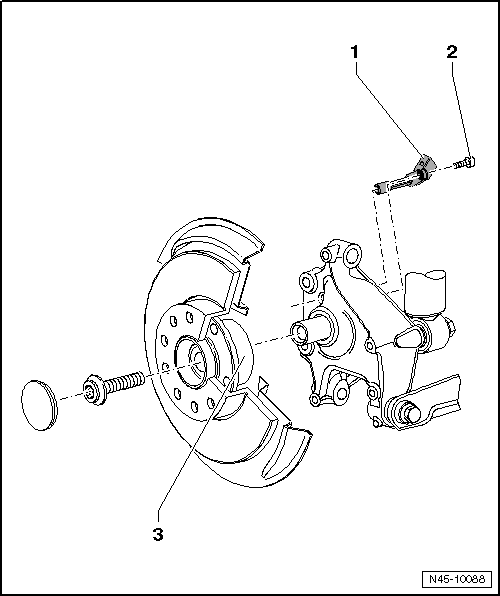

Assembly overview - speed sensor on rear axle

1 -  ABS speed sensor
Before inserting sensor, clean inner surface of fitting hole and coat it with high-temperature paste -G 052 112 A3-.
Removing and installing → Chapter
2 -  Bolt
8 Nm
3 -  Wheel hub with wheel bearing unit
The ABS sensor ring is integrated in the wheel bearing unit.
Assembly overview - speed sensor on front axle
1 -  ABS speed sensor Before inserting sensor, clean inner surface of fitting hole and coat it with high-temperature paste -G 052 112 A3-. ...

Removing and installing speed sensors on front axle -G45-/-G47-
  Note Removal and installation is described for the front left speed sensor. Removal and installation of the front right speed sensor is analogous. ...
