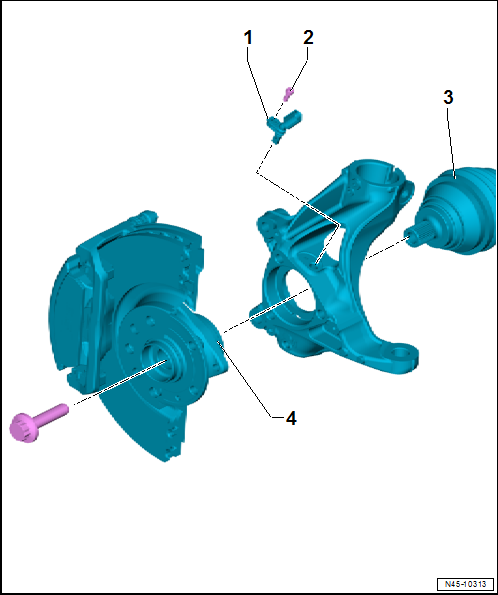

Assembly overview - speed sensor on front axle

1 -	ABS speed sensor

Before inserting sensor, clean inner surface of fitting hole and coat it with high-temperature paste -G 052 112 A3-.

Removing and installing → Chapter

2 -

Bolt

8 Nm

3 -	Drive shaft

Assembly overview → Running gear, axles, steering; Rep. gr.40.

Removing and installing → Running gear, axles, steering; Rep. gr.40.

4 -	Wheel hub with wheel bearing unit

The ABS sensor ring is integrated in the wheel bearing unit.

Removing and installing → Running gear, axles, steering; Rep. gr.40.
