Volkswagen Golf Service & Repair Manual: Structure of factory finish, base coat

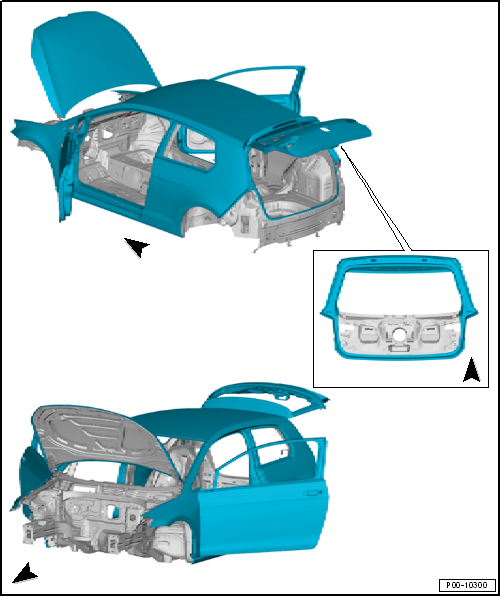

Base coat, 2-door

Structure of factory finish, base coat

 -  Base coat
Only the coloured areas of the body receive a base coat.

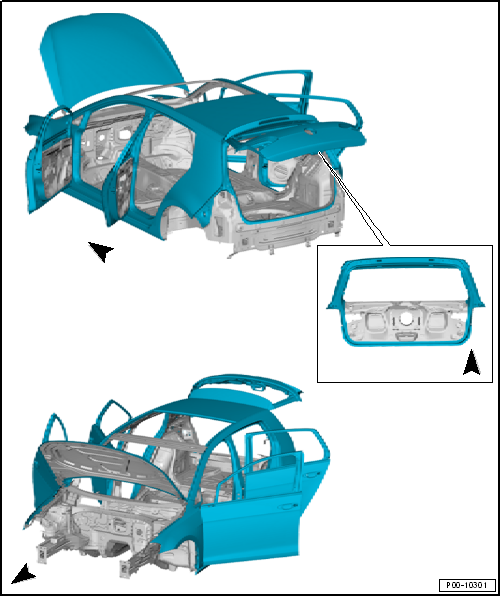

Base coat, 4-door

Structure of factory finish, base coat

 -  Base coat
Only the coloured areas of the body receive a base coat.
Structure of factory finish, surfacer
Surfacer, 2-door vehicles  -  Surfacer Only the coloured areas of the body are filled.         ...

Structure of factory finish, clear coat
Clear coat, 2-door  -  Clear coat Only the coloured areas of the body receive a clear coat.         ...
