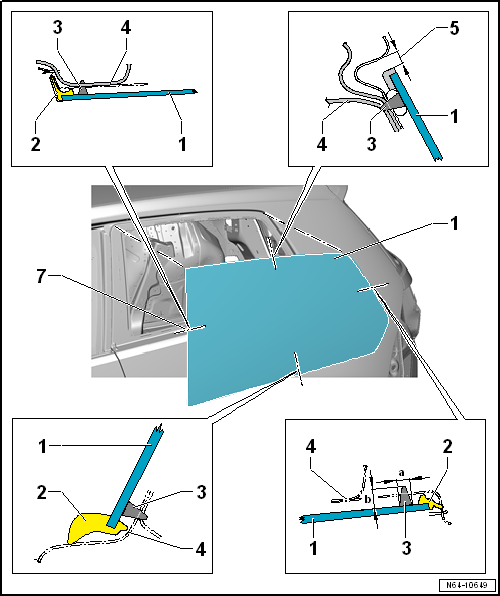

Assembly overview - rear side windows

1 -	Rear side window

q	Removing rear side window → Chapter

2 -

Seal

Integral part of rear side window

3 -	PUR adhesive sealant

Cross section of bead: height = 10 mm -dimension b-, width = 6.5 mm -dimension a- (including precoating, residual material on window glass and window flange).
Minimum curing period → Chapter

4 -	Body flange

5 -

Gap

Need to be carried out evenly

Assembly overview – front side window

1 - Centring clip 2 - Retaining clip Qty. 2 3 - Front side window Removing front side window →& ...

Removing and installing front side window

WARNING Always wear safety goggles and leather gloves. Note To cut out the front side window, use the wire reel -VAS 6452/1-. ...
