Volkswagen Golf Service & Repair Manual / Air conditioning system with refrigerant R134a / General information on refrigerant circuit / Refrigerant circuit components / Expansion valve

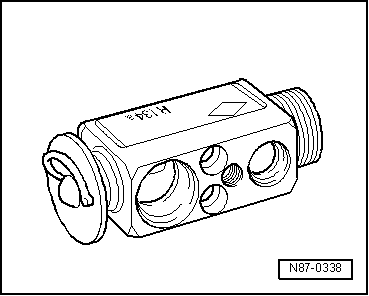

The expansion valve atomises incoming refrigerant and regulates the flow so that, depending on the heat transport, the vapour does not become a gas until it reaches the outlet of the evaporator.

Expansion valve

Receiver

The receiver collects the liquid droplets and directs them in a continuous stream to the expansion valve. Moisture which has entered the refrigerant circuit during as ...

O-ring

These O-rings seal the joints between the individual components of the refrigerant circuit. Use only seals that are resistant to refrigerant R134a an ...
