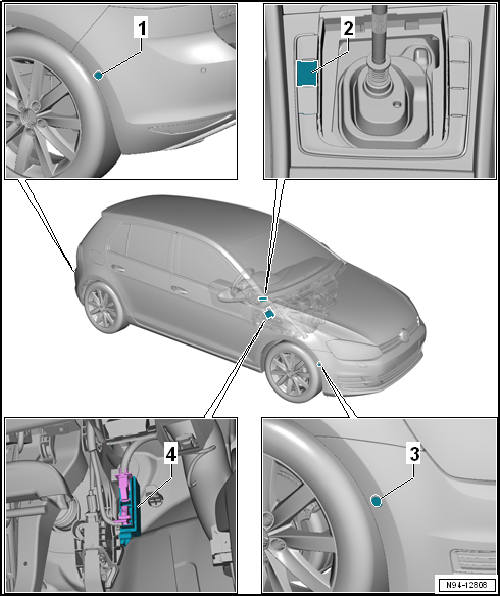

Volkswagen Golf Service & Repair Manual: Assembly overview - park assist steering, RHD vehicles
| 1 - |
Rear park assist steering senders |
| Rear left park assist steering sender -G716- |
| Rear right park assist steering sender -G717- |
| Removing and installing
→ Chapter |
| 2 - |
Park assist steering button -E581- |
| Removing and installing
→ Chapter |
| 3 - |
Front park assist steering senders |
| Front left sender for park assist steering on left side of vehicle
-G568- |
| Front right sender for park assist steering on right side of vehicle
-G569- |
| Removing and installing
→ Chapter |
| 4 - |
Park assist steering control unit -J791- |
| Removing and installing
→ Chapter |
| Removing and installing control unit |
| – |
Removing and installing park assist steering control unit
-J791-
→ Chapter „Removing and installing parking aid control unit
-J446-“ |
|
|
|
1 -
Park assist steering button -E581-
Removing and installing
→ Chapter
2 -
Rear park assist steering senders
...
Removing
–
Remove wheel housing liner
→ General body repairs, exterior; Rep. gr.66.
...
