Removing

–	Remove wheel housing liner → General body repairs, exterior; Rep. gr.66.

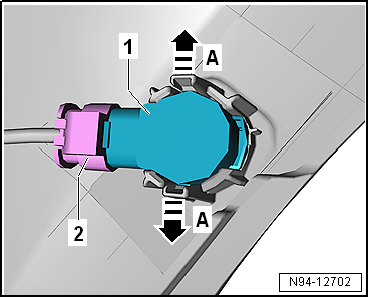

–	Press both locking lugs in direction of arrow -A- while at the same time pressing in sender -1- as far as stop.

–	Disconnect electrical connector -2-.

Installing

Install in the reverse order of removal, observing the following:

Note

When inserting the sender in the sender retainer, make sure that the isolation ring (black silicone ring) is seated correctly on the sender head.

Both locking lugs of sender retainer must audibly engage when installing the sender.

Removing and installing front senders

Assembly overview - park assist steering, RHD vehicles

1 - Rear park assist steering senders Rear left park assist steering sender -G716- Rear right park assist steering sender -G717- ...

Removing and installing rear senders

Removing – Remove rear wheel housing liner → General body repairs, exterior; Rep. gr.66. &nb ...
