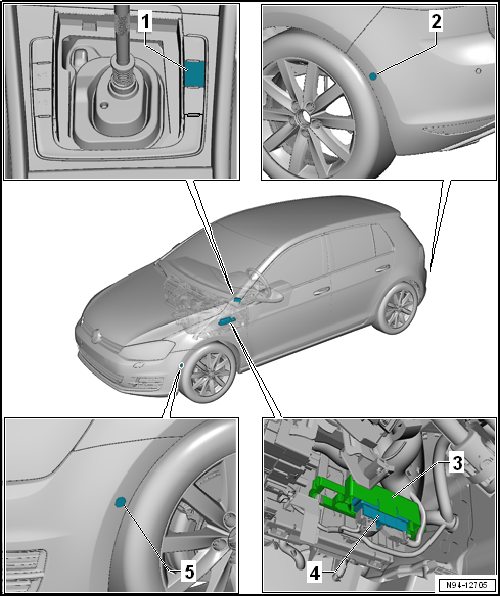

Volkswagen Golf Service & Repair Manual: Assembly overview - park assist steering, LHD vehicles
| 1 - |
Park assist steering button -E581- |
| Removing and installing
→ Chapter |
| 2 - |
Rear park assist steering senders |
| Rear left park assist steering sender -G716- |
| Rear right park assist steering sender -G717- |
| Removing and installing
→ Chapter |
| For parking aid control unit -J446- |
| Removing and installing
→ Chapter |
| 4 - |
Park assist steering control unit -J791- |
| Removing and installing
→ Chapter |
| 5 - |
Front park assist steering senders |
| Front left sender for park assist steering on left side of vehicle
-G568- |
| Front right sender for park assist steering on right side of vehicle
-G569- |
| Removing and installing
→ Chapter |
1 -
Rear park assist steering senders
Rear left park assist steering sender -G716-
Rear right park assist steering sender -G717-
...
