Volkswagen Golf Service & Repair Manual: Assembly overview - oil filter/oil pressure switch

Assembly overview - oil filter/oil pressure switch

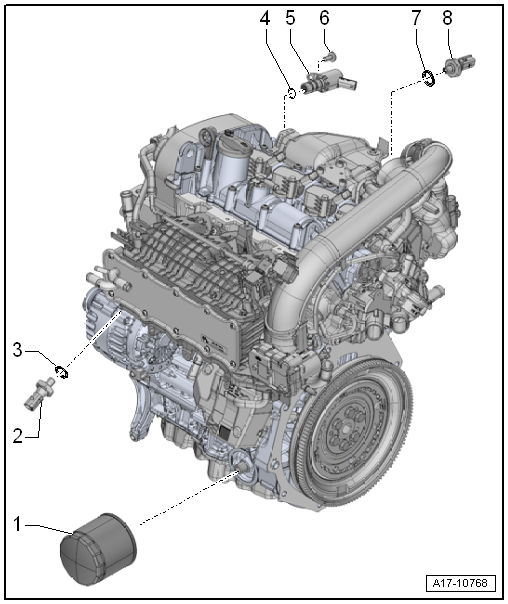

1 -  Oil filter
Remove and install with oil filter tool -3417-.
Before installing, lightly coat seal with clean engine oil.
20 Nm
See note → Anchor
2 -  Oil pressure switch for reduced oil pressure -F378-
Switch pressure 0.3…0.6 bar
Checking → Chapter
If removed, oil pressure switch must be renewed
Removing and installing → Chapter
20 Nm
3 -  Seal
The seal cannot be replaced individually
If removed, oil pressure switch must be renewed
4 -  O-ring
Renew
5 -  Oil pressure control valve -N428-
Removing and installing → Chapter
6 -  Bolt
8 Nm
7 -  Seal
The seal cannot be replaced individually
If removed, oil pressure switch must be renewed
8 -  Oil pressure switch -F1-
Switch pressure 2.15…2.95 bar
Checking → Chapter
If removed, oil pressure switch must be renewed
Removing and installing → Chapter
20 Nm
Oil filter, oil pressure switch
...

Removing and installing oil pressure switch -F1-
