Note

The front left/right vehicle level sender -G78/G289- is only available as a replacement part complete with coupling rod and upper and lower retaining plates.

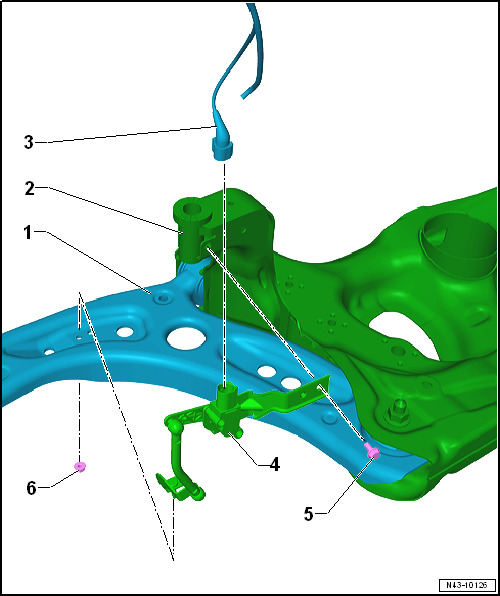

Assembly overview - front vehicle level senders

1 -	Suspension link

2 -

Subframe

3 -	Electrical connector

4 -	Front left vehicle level sender -G78- and front right vehicle level sender -G289-

Complete with attachments

Lever must face outwards

Removing and installing → Chapter

Carry out basic setting of headlights → Electrical system; Rep. gr.94

5 -

Bolt

8 Nm

6 -

Nut

Renew after removing

8 Nm
