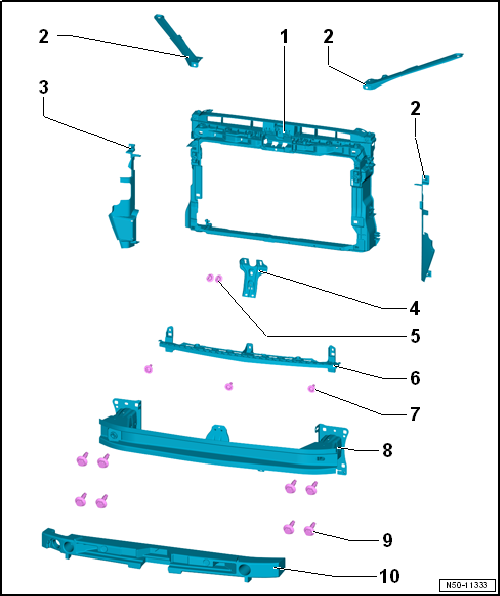

Volkswagen Golf Service & Repair Manual: Assembly overview - lock carrier, NAR
| 1 - | Lock carrier with add-on parts |
- Removing and installing → Chapter
- Moving to and back from service position → Chapter
| 2 - | Mounting plate |
- Left and right
| 3 - | Air guide |
- Left and right
| 4 - | Support for lock carrier |
| 5 - | Hexagon nut |
- Qty. 2
- 12 Nm
| 6 - | Centre guide profile |
| 7 - | Bolt |
- Qty. 3
- 8.0 Nm
| 8 - | Bumper carrier |
| 9 - | Bolt |
- Qty. 4 on each side
- 55 Nm
| 10 - | Foam element |
Assembly overview - lock carrier
Assembly overview - lock carrier
