Assembly overview - lock carrier

Volkswagen R GmbH, optional equipment, “R Line” and “R”

Assembly overview - lock carrier

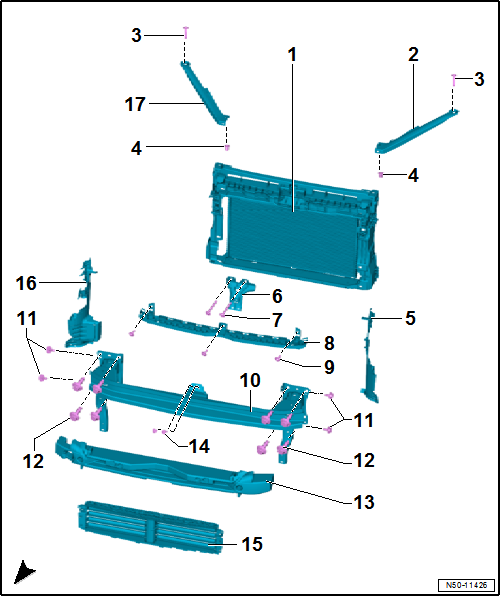

1 -	Lock carrier with add-on parts

Allocation → Electronic Parts Catalogue “ETKA”
Removing and installing → Chapter
Moving to and back from service position → Chapter

2 -	Mounting plate

Left

3 -

Bolt

Qty. 1 on each side
8.0 Nm

4 -

Bolt

Qty. 2 on each side
8.0 Nm

5 -

Air guide

Left
Different versions, allocation → Electronic Parts Catalogue “ETKA”

6 -	Support for lock carrier

7 -

Bolt

Qty. 2 on each side
12 Nm

8 -	Centre guide profile

9 -

Bolt

Qty. 3 or 4, depending on model
8.0 Nm

10 -	Bumper carrier

11 -

Bolt

Qty. 2 on each side
8.0 Nm

12 -

Bolt

Qty. 4 on each side
55 Nm

13 -	Foam element

Allocation → Electronic Parts Catalogue “ETKA”

14 -

Bolt

Qty. 2
12 Nm

15 -	Adjustable air duct

Allocation → Electronic Parts Catalogue “ETKA”

16 -

Air guide

Right
Different versions, allocation → Electronic Parts Catalogue “ETKA”

17 -	Mounting plate

Right

Look carrier

...

Assembly overview - lock carrier, NAR
