Assembly overview - impact bar

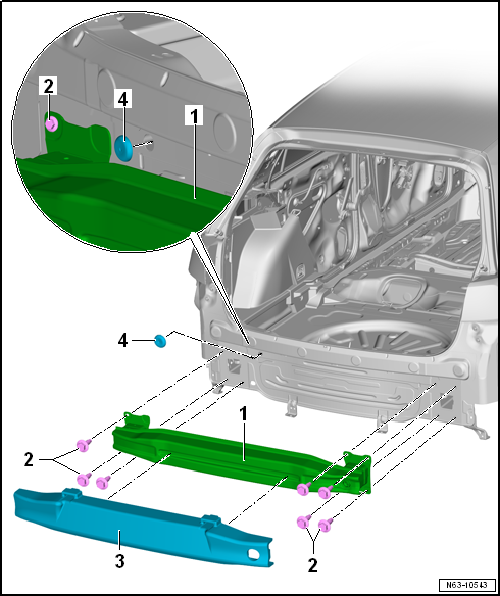

1 -	Impact bar

Different versions, allocation → Electronic Parts Catalogue “ETKA”
Removing and installing → Chapter
Vehicles with towing bracket → Chapter

2 -

Bolt

Qty. 4 on right
Qty. 3 on left
20 Nm + 90°

3 -	Foam element

Is engaged in impact bar -1-
Only installed in selected models available in selected markets
Different versions, allocation → Electronic Parts Catalogue “ETKA”

4 -

Cap

Not with towing bracket
