Volkswagen R GmbH, optional equipment, “R Line” and “R”

Note

Different versions. For allocation see → Electronic Parts Catalogue “ETKA”.

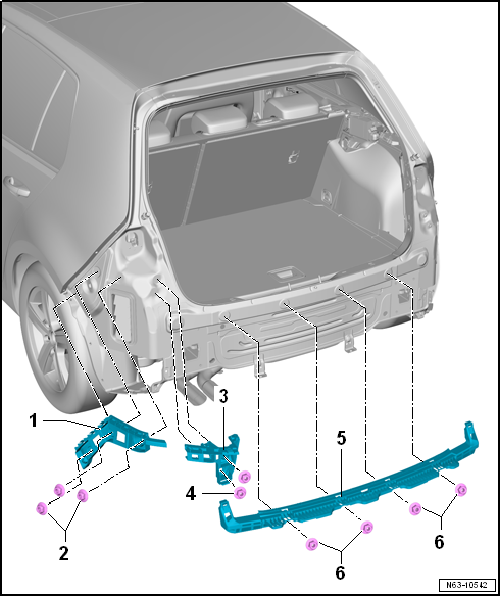

Assembly overview - guides for bumper cover

1 -	Guide bracket

Left and right

2 -	Hexagon nut

Qty. 3 on each side
3.5 Nm

3 -	Guide bracket

For tail light on left and right

4 -	Hexagon nut

Qty. 2 on each side
3.5 Nm

5 -	Centre guide profile

6 -	Hexagon nut

Qty. 4
3.5 Nm
