Note

Minor differences may be encountered in respect of front wheel housing liner, depending on vehicle model.
Only the left side is shown. The procedure for the right side is similar.

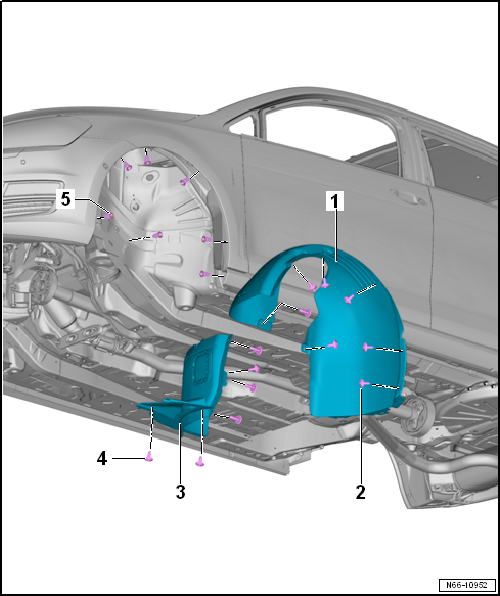

Assembly overview - front wheel housing liner

1 -	Front wheel housing liner

Material PP/EPDM
Removing and installing → Chapter

2 -

Bolt

Qty. 7 on each side
2.0 Nm

3 -	Wheel housing liner front part

Material PP/EPDM
With cover; different versions, allocation → Electronic Parts Catalogue “ETKA”
Removing and installing → Chapter

4 -

Bolt

Qty. 6 on each side
2.0 Nm

5 -	Expanding nut

Qty. 7 on each side

Wheel housing liner

...

Assembly overview - rear wheel housing liner

Note Minor differences may be encountered in respect of front wheel housing liner, depending on vehicle model. Only the left side is shown. The ...
