Volkswagen Golf Service & Repair Manual: Removing and installing emergency call module control unit and communication unit -J949-, eGolf

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Mobile online services / Removing and installing emergency call module control unit and communication unit -J949-, eGolf

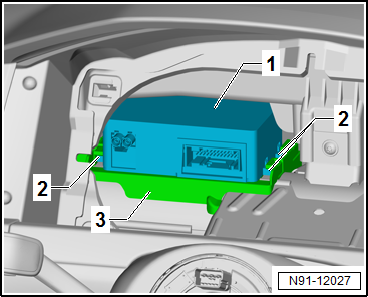

The emergency call module control unit and communication unit -J949--1- is fitted behind the dash panel insert.

Set emergency call module control unit and communication unit -J949- to workshop mode → Vehicle diagnostic tester.
Removing
–  Set emergency call module control unit and communication unit -J949- to workshop mode → Vehicle diagnostic tester.
–  Remove dash panel insert → Electrical system; Rep. gr.90.


Removing and installing emergency call module control unit and communication unit -J949-, eGolf

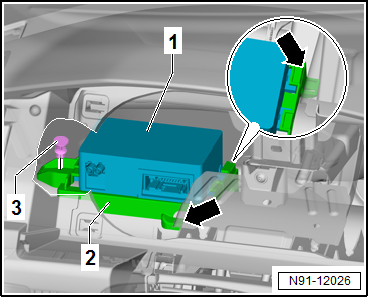

–  Separate attachment -3- and remove bracket together with control unit -2-.
–  Release and separate connectors on control unit for emergency call module and communication unit -J949-.


Removing and installing emergency call module control unit and communication unit -J949-, eGolf

–  Operate locking hooks -2- and pull control unit for emergency call module and communication unit -J949- out of bracket -3-.
Installing
Install in reverse order of removal.
