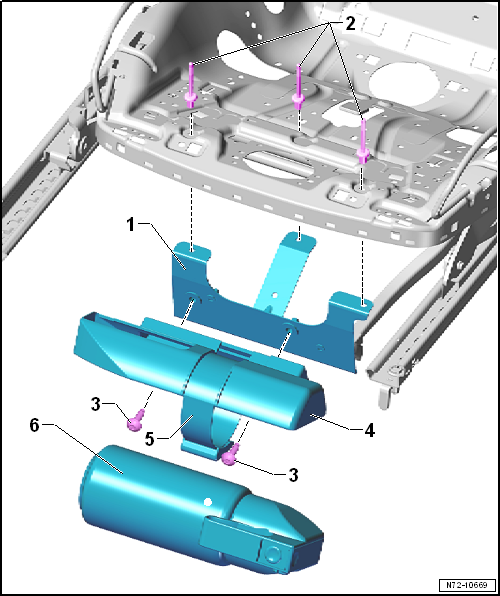

Assembly overview - fire extinguisher

1 -  Bracket
–  Remove bracket -4-.
–  Remove seat cover and padding from seat pan → Chapter.
  WARNING
Risk of eye injury.
Wear eye protection.
–  Drill out rivets -2- with a drill, and remove bracket.
2 -  Rivet
3 -  Bolt
4 -  Bracket
–  Remove fire extinguisher -6-.
–  Unscrew bolts -3-, and remove bracket.
5 -  Tensioning straps
6 -  Fire extinguisher
–  Open securing strap -5-, and remove fire extinguisher.
Assembly overview - seat pan
Seat pan, standard seat, seat of type "ergo Aktiv"   Note   The illustration shows the driver seat pan. The front passenger seat pan is similar (mir ...

Removing and installing front seat
  Note   Removal and installation is described for the left seat. Apply the same instructions for removal and installation of t ...
