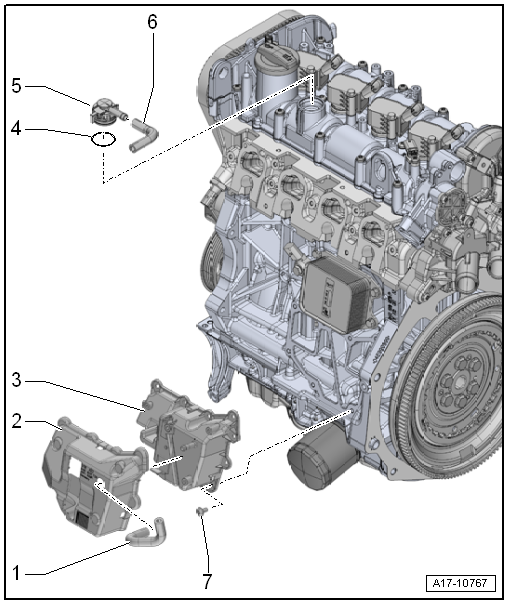

Assembly overview - crankcase breather system

1 -

Hose

For crankcase breather

2 -

Cover

For oil separator

3 -	Oil separator

Removing and installing → Chapter

Renew if damaged

4 -

O-ring

Renew

5 -

Union

6 -

Hose

For crankcase breather

7 -

Bolt

Self-locking.

Renew

9 Nm

Oil separator - tightening torque and sequence

–	Tighten bolts in the sequence -1 … 9- to 9 Nm.
