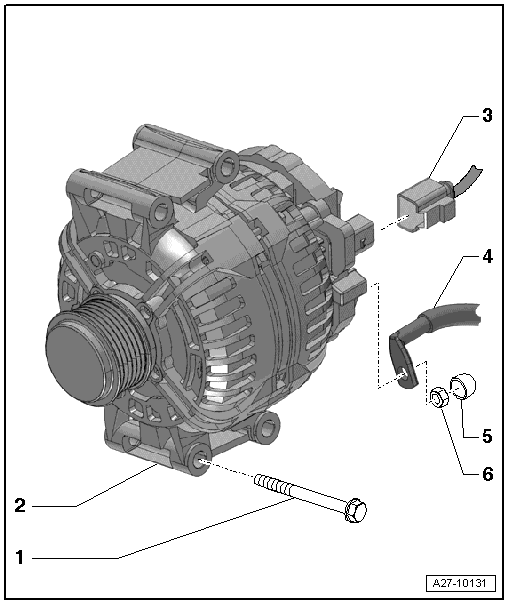

Assembly overview - alternator without sliding bushes

1 -

Bolt

Qty. 4

Specified torque: 23 Nm

2 -	Alternator -C-

Removing and installing → Chapter

Checking → Chapter

Removing and installing poly V-belt pulley → Chapter

Removing and installing voltage regulator -C1- → Chapter

3 -	Electrical connector

4 -	Terminal 30/B+

5 -

Cap

6 -

Nut

Specified torque: 20 Nm

Alternator

...

Assembly overview - alternator with sliding bushes

1 - Alternator -C- Removing and installing → Chapter Checking → Chapter Removing and install ...
