Volkswagen Golf Service & Repair Manual / Brake system (hybrid) / Technical data / Technical data

Brake master cylinder and brake servo

Brake master cylinder			Diameter in mm	23.81
Brake servo (LHD)			Electromechanical brake servo

Front brakes

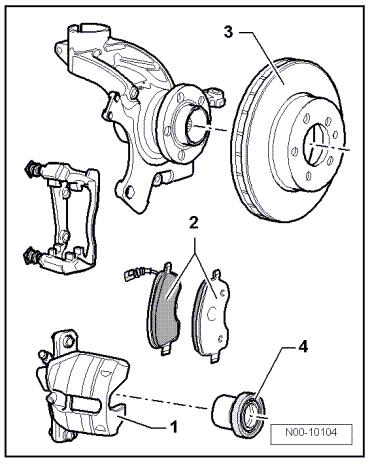

Front brake PC57 (15”):

Front brakes

Item	PR No.		1ZE / 1ZP
1	Brake caliper		PC57 (15”)
2	Brake pad, thickness	mm	14
	Brake pad, wear limit without backplate	mm	2
3	Brake disc	Diameter in mm	288
	Brake disc, thickness	mm	25
	Brake disc, wear limit	mm	22
4	Brake caliper, piston	Diameter in mm	57

Front brake PC57 (16”):

Front brakes

Item	PR No.		1ZA / 1ZD / 1ZB
1	Brake caliper		PC57 (16”)
2	Brake pad, thickness	mm	14
	Brake pad, wear limit without backplate	mm	2
3	Brake disc	Diameter in mm	312
	Brake disc, thickness	mm	25
	Brake disc, wear limit	mm	22
4	Brake caliper, piston	Diameter in mm	57

Front brakes C60 (17”):

Front brakes

Item	PR No.		1LJ / 1LM
1	Brake caliper		C60 (17”)
2	Brake pad, thickness	mm	13
	Brake pad, wear limit without backplate	mm	2
3	Brake disc	Diameter in mm	340
	Brake disc, thickness	mm	30
	Brake disc, wear limit	mm	27
4	Brake caliper, piston	Diameter in mm	60
