Volkswagen Golf Service & Repair Manual: Rear brakes
|
|

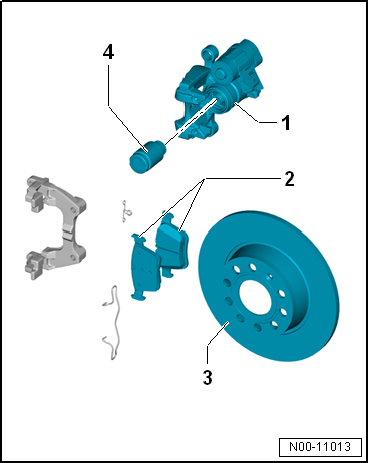

| Item | PR No. | 1KE / 1KV | ||
| 1 | Brake caliper | FNc-M38 (15”) | ||
| 2 | Brake pad, thickness | mm | 11 | |
| Brake pad, wear limit without backplate | mm | 2 | ||
| 3 | Brake disc | Diameter in mm | 272 | |
| Brake disc, thickness | mm | 10 | ||
| Brake disc, wear limit | mm | 8 | ||
| 4 | Brake caliper, piston | Diameter in mm | 38 | |
|
|
| Item | PR No. | 1KJ / 1KY | ||
| 1 | Brake caliper | FNc-M42 (17”) | ||
| 2 | Brake pad, thickness | mm | 11 | |
| Brake pad, wear limit without backplate | mm | 2 | ||
| 3 | Brake disc | Diameter in mm | 310 | |
| Brake disc, thickness | mm | 22 | ||
| Brake disc, wear limit | mm | 20 | ||
| 4 | Brake caliper, piston | Diameter in mm | 42 | |
Technical data
Brake master cylinder and brake servo
Brake master cylinder
Diameter
in mm
23.81
Brake
...
Brake test
General information
The drive is provided by the test rig.
For the test, ensure for vehicles with a manual gearbox that ...
