Volkswagen Golf Service & Repair Manual: Stand -VAS 6873/1

Volkswagen Golf Service & Repair Manual / General information, paint / Workshop equipment / Tools / Stand -VAS 6873/1

Designation:

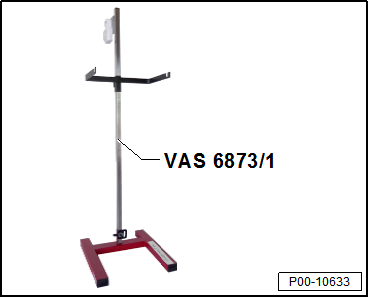

Stand -VAS 6873/1-

Product description:

Stand -VAS 6873/1- with timer

Technical data:

220-240 V, 1 OH+PE

Items supplied:

Complete stand with timer and assembly instructions

Note

Refer to manufacturer's assembly instructions.

Stand -VAS 6873/1
