Volkswagen Golf Service & Repair Manual: Separating seat pan cover from seat pan padding

Special tools and workshop equipment required



Upholstery clip pliers -V.A.G 1634
Upholstery clip pliers -V.A.G 1634

Removing
–  Remove cover and padding → Chapter.


Hook -3438
Hook -3438

Vehicles with seat depth adjustment
–  Unclip beading strips -2- from locking lugs -5-.

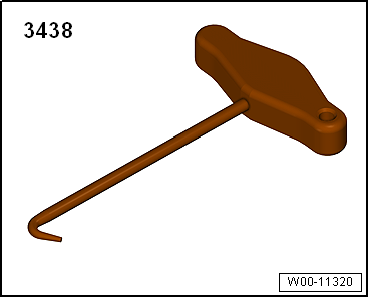

–  Detach seat cover from tabs -4- on both sides using front end hook -3438-.
–  Remove carrier -3- with seat padding and seat depth adjustment from seat cover -1-.


Separating seat pan cover from seat pan padding

Continued for all vehicles

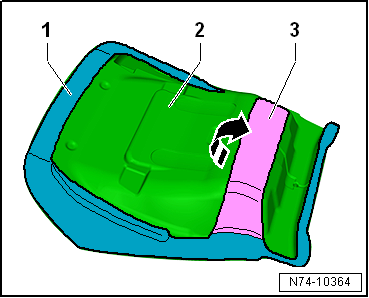

–  Pull retaining tab -3- of seat cover -1- in -direction of arrow- off seat padding -2-.


Separating seat pan cover from seat pan padding

–  Pull seat cover -1- off seat padding -2-.

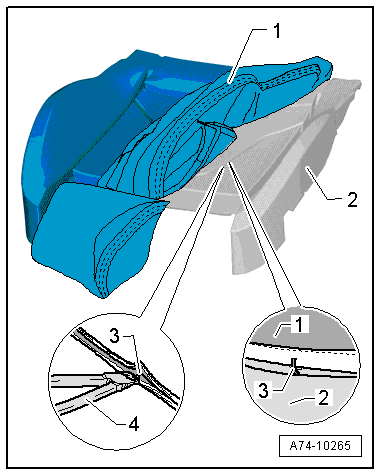

–  Cut through upholstery clips -3- using pliers -4-.
Installing
Install in reverse order, but note the following:
  Renew all opened retaining clips → Item and fit them in the same positions.


Separating seat pan cover from seat pan padding

Separating seat pan cover from seat pan padding

–  Pull seat cover -1- over padding -4-.

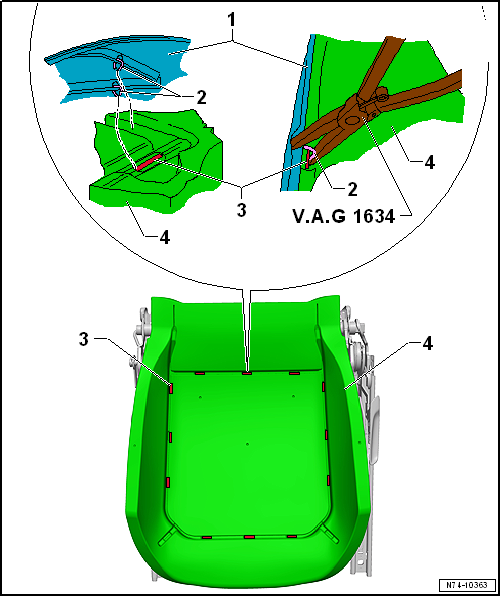

–  Secure seat cover -1- with upholstery clips -2- in mountings -3-.

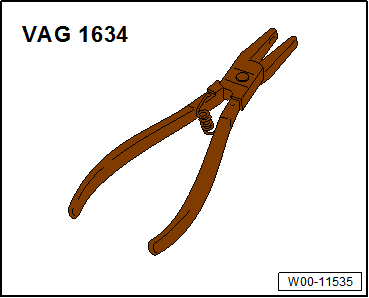

–  Use upholstery clip pliers -V.A.G 1634- for this.
–  Ensure that seat cover -1- is free of creases.

Specified torques
  → Chapter „Assembly overview - cover and padding for seat pan“
  → Chapter „Assembly overview - front backrest“
  → Chapter „Assembly overview - front seat“

Removing and installing backrest cover and backrest padding
