Volkswagen Golf Service & Repair Manual: Repairing smooth pipe

Smooth pipe with a diameter or 5x1 mm or 6x1 mm can be repaired with EPDM hose.
–  Cut damaged section at right angles out of smooth pipe which is to be repaired.
–  Select the appropriate EPDM hose -2- and cable ties according to the electronic parts catalogue (ETKA).

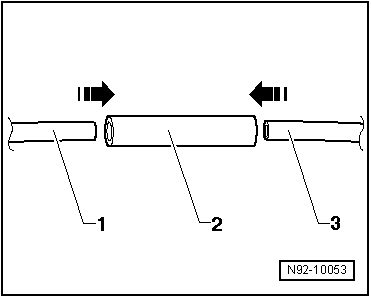

–  Cut EPDM hose -2- so that ends -1- and -3- of smooth pipe can each be pushed about 10 mm into the EPDM hose -2-.


Repairing smooth pipe

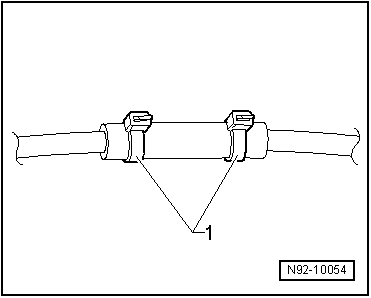

–  Secure the repair joints with cable ties -1-.


Repairing smooth pipe

Hose repair
A new repair concept has been developed for repair work on wash system hoses. Various connectors, special EPDM hoses (ethylene-propylene terpolymer) and heat-shrink h ...

Repairing corrugated pipe
Special tools and workshop equipment required     Hot air blower -VAS 5179- or ...

Other materials:

Assembly overview - intake manifold
1 -  Coolant pipe Clipped onto intake manifold. Removing and installing coolant pipe → Chapter 2 -  Intake manifold Combined in one unit with charge air cooler Remov ...

Removing and installing fresh air/recirculated air, air flow flap control motor -V425-, RHD vehicles
Special tools and workshop equipment required Vehicle diagnostic tester   Note The control motor has end stops with integrated limit switches instead of a potentiometer. First ca ...

Assembly overview - heat shield
1 -  Underbody heat shield Removing and installing → Chapter 2 -  Retainer Qty. 6 3 -  Heat shield for centre exhaust system Removing and installing → Chapter. 4&n ...
