Volkswagen Golf Service & Repair Manual: Renewing trim elements, bolted trim elements

Volkswagen Golf Service & Repair Manual / Wheels and Tyres Guide - General Information / Information on wheel rims / Renewing trim elements / Renewing trim elements, bolted trim elements

These wheels are fitted with exchangeable trim elements. Follow these instructions during installation.

–	Clean the thread in the wheel before screwing in the new bolts.

–	Always use new bolts!

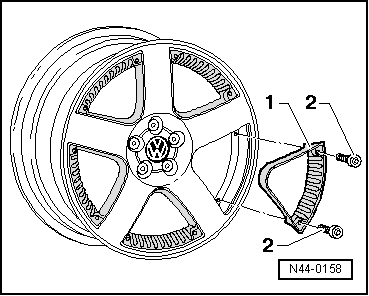

1 -	Trim element

2 -	Hexagon socket head bolt

Torque setting for self-locking hexagon socket head bolts: 5 Nm
