Volkswagen Golf Service & Repair Manual: Removing and installing wiper arm

Special tools and workshop equipment required

Puller -T10369-


Removing and installing wiper arm

Torque wrench -V.A.G 1331-
Removing
–  Switch on ignition.
–  Actuate “rear window wipe” function and allow wiper arm to move to its end position.
–  Switch off ignition.
–  Remove ignition key, if inserted.


Removing and installing wiper arm

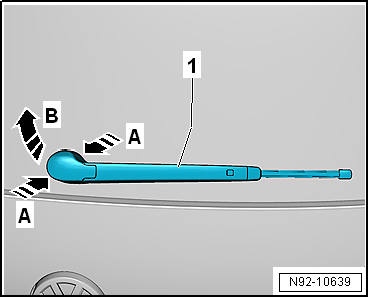

–  Press together cap of rear window wiper -1- in direction of arrow -A-.
–  Fold up cover cap in direction of arrow -B- to unclip.
–  Loosen hexagon nut (13 mm) without unscrewing it completely.


Removing and installing wiper arm

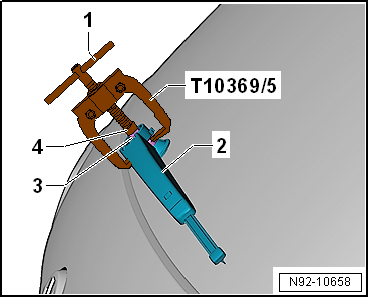

–  Fit puller -T10369/5- to wiper arm -2-.
–  Fit thrust piece -3- to wiper shaft.
–  Screw in bolt -1- until wiper arm has been pulled off the wiper shaft.
–  Unscrew nut -4- completely and remove wiper arm.
Installing
Install in the reverse order of removal, observing the following:
–  Adjusting wiper arm → Chapter.


Removing and installing wiper arm

Removing and installing wiper blade
  Caution Risk of damage to the wiper blade. Joint-free wipers are very flexible. To lift the ...

Adjusting wiper arm
Special tools and workshop equipment required     Torque wrench -V.A.G 1331- –&nbs ...
