Volkswagen Golf Service & Repair Manual: Removing and installing windscreen washer fluid level sender

Volkswagen Golf Service & Repair Manual / Electrical system / Windscreen wipe/ wash system / Windscreen washer system / Removing and installing windscreen washer fluid level sender

Special tools and workshop equipment required
Drip tray
  Note
Dependent on the equipment level, the windscreen washer fluid level sender -G33- may either be renewed individually or together with the washer fluid reservoir.
Removing
–  Remove front left wheel housing liner → General body repairs, exterior; Rep. gr.66.
–  Place drip tray under washer fluid reservoir.

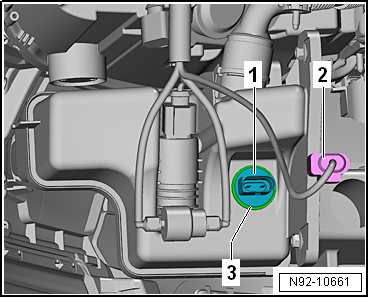

–  Disconnect electrical connector -2-.
–  Pull windscreen washer fluid level sender -G33--1- out of washer fluid reservoir.
–  If necessary, remove seal -3- from washer fluid reservoir.
Installing
Install in the reverse order of removal, observing the following:
–  Ensure that seal is fitted correctly to opening in washer fluid reservoir.
–  Coat seal with washer fluid so that windscreen washer fluid level sender -G33- can be inserted more easily.


Removing and installing windscreen washer fluid level sender

Removing and installing bracket for washer fluid reservoir, »R«
Removing –  Remove washer fluid reservoir → Chapter.     –  ...

Removing and installing windscreen washer fluid level sender, »R«
Special tools and workshop equipment required Drip tray   Note Dependent on the equipment level, the windsc ...
