Removing

Note

Minor differences will be encountered on removal and installation, depending on version.
For some versions the exhaust system may have to be detached and the heat shield may have to be pushed aside.

Removing and installing towing bracket

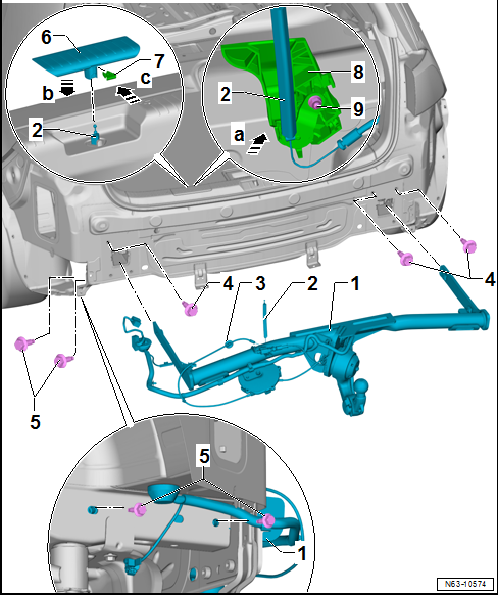

–	Remove bumper cover → Chapter.

–	Pull off locking element -7- on release lever -6--arrow a-.

–	Pull release lever -6- off Bowden cable -2--arrow b-.

–	Pull Bowden cable -3- out of lock carrier trim.

–	Thread Bowden cable -2- out of guide -8--arrow c-.

–	Pull Bowden cable together with grommet -3- out of vehicle.

–	Remove bolts -5-.

–	Pull towing bracket -1- in a parallel movement out of longitudinal members.

Installing

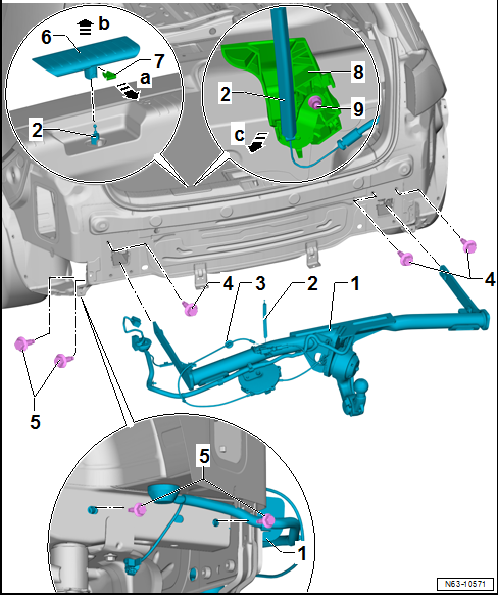

Removing and installing towing bracket

–	Installation is carried out in reverse order.

DANGER!

The bolts -4- function as plugs and seal the passenger compartment against exhaust fumes, and must without exception be installed.

Ensure that grommet -3- on Bowden cable is properly secured in cross panel.

–	Perform functional check after installation of towing bracket.

Assembly overview - Bowden cable

1 - Release lever In the interior 2 - Frame In lock carrier trim 3 - Grommet In cross pane ...

Removing and installing Bowden cable

Removing WARNING It is not permissible to loosen bolts other than those specified. ...
