Volkswagen Golf Service & Repair Manual: Removing and installing sunlight penetration photosensor -G107-

Special tools and workshop equipment required
Removal wedge -3409-

Removing and installing sunlight penetration photosensor -G107-

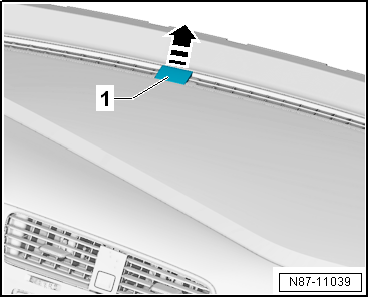

–  Unclip sunlight penetration photosensor -1- in direction of arrow from dash panel.
–  Separate connector.
–  Install in reverse order.
