Volkswagen Golf Service & Repair Manual: Removing and installing striker pin
Special tools and workshop equipment
required |
|
|
|
|
|
Torque wrench -V.A.G 1331- |
– |
Remove trim for rear lid lock
→ General body repairs, interior; Rep. gr.70. |
– |

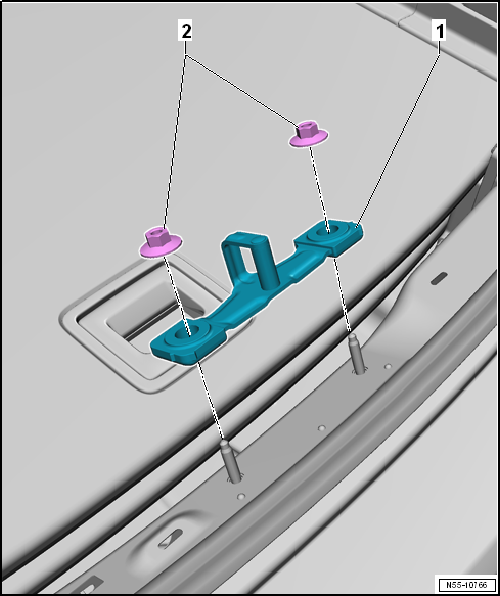

Unscrew hexagon nuts -2- and remove
striker pin -1- from lock carrier. |
– |
Mount striker pin -1- with hexagon nuts
-2- onto lock carrier. |
– |
Adjusting striker pin
→ Chapter. |
Hexagon nut
→ Chapter „Assembly overview - rear lid“
