Special tools and workshop equipment required

Removing

Torque wrench -V.A.G 1331-

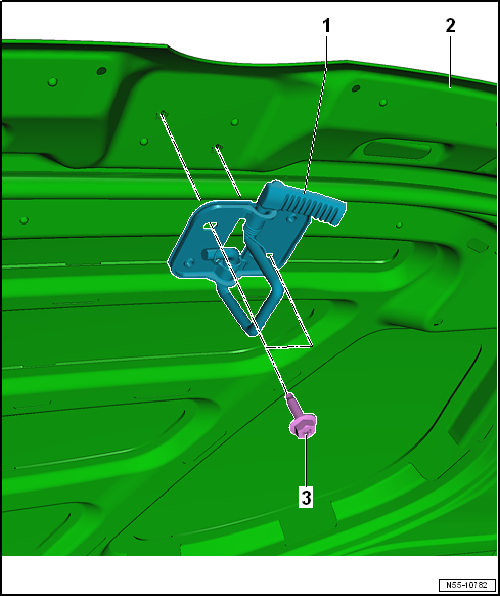

Removing and installing striker pin

–	Open bonnet -2-.

–	Remove bolts -3-.

–	Remove striker pin -1- from bonnet -2-.

Installing

Removing and installing striker pin

Installation of the striker pin -1- is carried out in the reverse order of removal.

–	Adjusting striker pin → Chapter.

Specified torques

Striker pin → Chapter „Assembly overview - bonnet“
