Volkswagen Golf Service & Repair Manual: Removing and installing spray jet, Golf

Volkswagen Golf Service & Repair Manual / Electrical system / Windscreen wipe/ wash system / Rear window washer system / Removing and installing spray jet, Golf

Note

The spray jet is installed in the high-level brake light.

Removing:

–	Remove high-level brake light → Chapter.

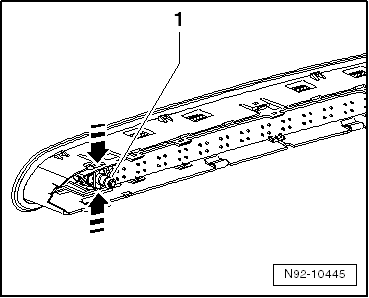

–	Release the two catches -arrows-.

–	Pull spray jet -1- towards rear out of high-level brake light.

Installing

Install in the reverse order of removal, observing the following:

Note

When connecting the washer fluid line, ensure that the securing clip engages audibly in the connection.

–	Adjusting rear window washer system spray jets → Booklet36.1.
