Volkswagen Golf Service & Repair Manual: Removing and installing selector lever position display -Y26-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Lights / Removing and installing selector lever position display -Y26-

Removing

Note

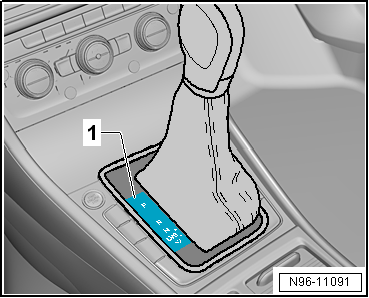

The selector lever position display -Y26--1- is integrated in the selector lever gaiter and cannot be removed individually.

The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.

–	Removing selector level gaiter → Rep. gr.34.

Installing

Installation is carried out in the reverse sequence.

–	Test functionality.
