Volkswagen Golf Service & Repair Manual: Removing and installing rear centre console vent duct

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Air duct / Removing and installing rear centre console vent duct

  Note

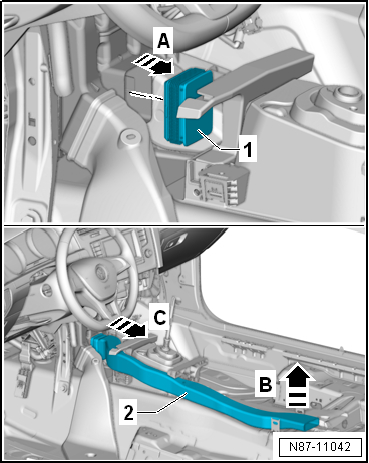

The illustration shows a left-hand drive vehicle.
Removing
–  Remove centre console → General body repairs, interior; Rep. gr.68.
  Note
If the vehicle is not provided with rear vents, a cap -1- is fitted on air distribution housing. Cap -1- is removed in -direction of arrow A-.

–  Swing air duct -2- upwards in -direction of arrow B-, pull it in -direction of arrow C- out of catches in air distribution housing and remove it.
Installing
Install in reverse order.
