Volkswagen Golf Service & Repair Manual: Removing and installing net partition

Removing
–  Fold down both rear seat backrests.

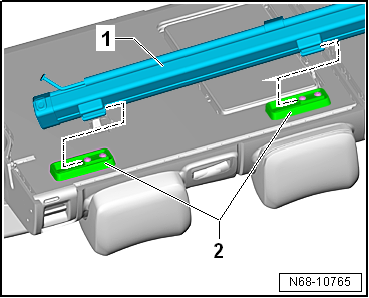

–  Pull net partition -1- towards right out of mountings -2- on right rear seat backrest (2/3), and remove it.
Installing
–  Insert guides of net partition -1- into mountings -2- on right rear seat backrest (2/3).
–  Push net partition towards left into mountings -2- on right rear seat backrest (2/3) as far as it will go.


Removing and installing net partition
