Volkswagen Golf Service & Repair Manual: Assembly overview - roof grab handle

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Equipment / Assembly overview - roof grab handle

Note

The assembly overview is shown for the front left roof grab handle. The assembly overview for the remaining roof grab handle is analogous.

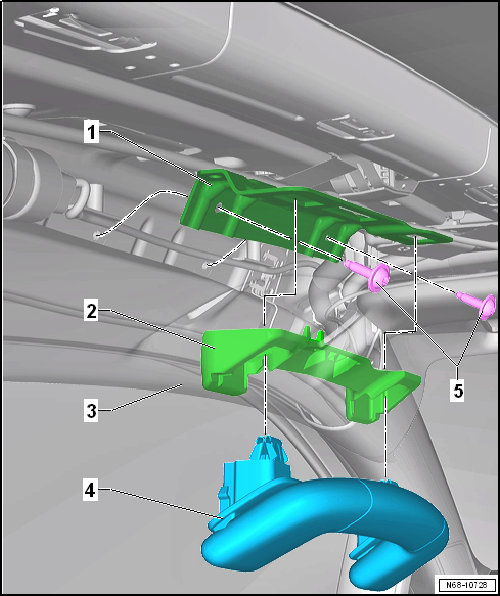

Assembly overview - roof grab handle

1 -	Bracket for roof grab handle

Removing and installing → Chapter

2 -	Spacer element

Clipped to roof grab handle
Before reinstalling, ensure that it is in the proper installation position and correct if necessary
It is not permissible to leave out the spacer element

3 -	Moulded headliner

Removing and installing → Chapter

4 -	Roof grab handle

Removing and installing → Chapter

5 -

Bolt

Qty. 2
4.5 Nm
